4

By the end of this section, you will be able to:
  • Describe the basic properties of each physical state of matter: solid, liquid, and gas
  • Define and give examples of atoms and molecules
  • Classify matter as an element, compound, homogeneous mixture, or heterogeneous mixture with regard to its physical state and composition
  • Distinguish between mass and weight
  • Apply the law of conservation of matter

Matter is defined as anything that occupies space (volume) and has mass (amount). Matter is all around us. Solids and liquids are more obviously matter: since, we can see that they take up space and their weight tells us that they have mass. Gases are also matter; if gases did not take up space, a balloon would stay collapsed rather than inflate when filled with some amount of gas.

Solids, liquids and gases are the three states (phases) of matter commonly found on earth (Figure 1). A solid is rigid and possesses a definite shape. A liquid flows and takes the shape of a container, except that it forms a flat or slightly curved upper surface when acted upon by gravity (in zero gravity, liquids assume a spherical shape). Both liquid and solid samples have volumes that are very nearly independent of pressure. A gas takes both the shape and volume of its container. Remember volume is the amount of space occupied by a substance where shape is the outline of the substance.

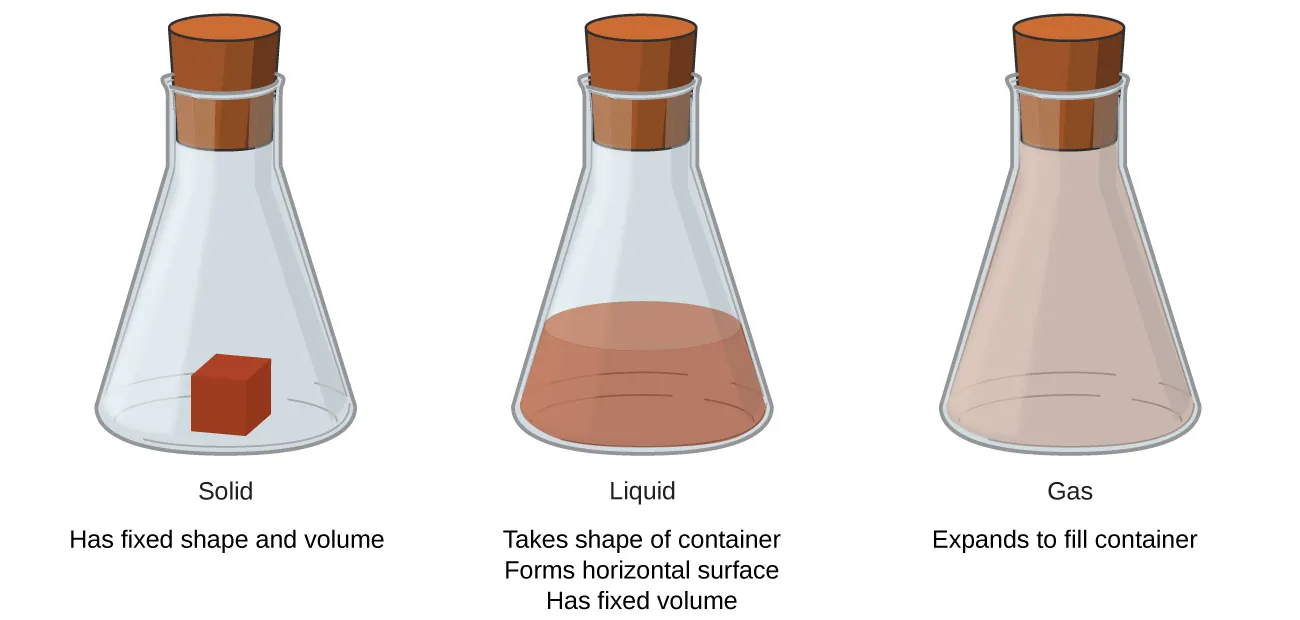

A beaker labeled solid contains a cube of red matter and says has fixed shape and volume. A beaker labeled liquid contains a brownish-red colored liquid. This beaker says takes shape of container, forms horizontal surfaces, has fixed volume. The beaker labeled gas is filled with a light brown gas. This beaker says expands to fill container.
The three most common states or phases of matter are solid, liquid, and gas.

A fourth state of matter, plasma, occurs naturally in the interiors of stars. A plasma is a gaseous state of matter that contains appreciable numbers of electrically charged particles. The presence of these charged particles imparts unique properties to plasmas that justify their classification as a state of matter distinct from gases.

Some samples of matter appear to have properties of solids, liquids and/or gases at the same time. This can occur when the sample is composed of many small pieces. For example, we can pour sand as if it were a liquid because it is composed of many small grains of solid sand. Matter can also have properties of more than one state when it is a mixture, such as with clouds. Clouds appear to behave somewhat like gases, but they are actually mixtures of air (gas) and tiny particles of water (liquid or solid).

The mass of an object is a measure of the amount of matter in it. One way to measure an object’s mass is to measure the force it takes to accelerate the object. It takes much more force to accelerate a car than a bicycle because the car has much more mass. A more common way to determine the mass of an object is to use a balance to compare its mass with a standard mass.

Although weight is related to mass, it is not the same thing. Weight refers to the force that gravity exerts on an object. This force is directly proportional to the mass of the object. The weight of an object changes as the force of gravity changes, but its mass does not. An astronaut’s mass does not change just because she goes to the moon. But her weight on the moon is only one-sixth her earth-bound weight because the moon’s gravity is only one-sixth that of the earth’s. She may feel “weightless” during her trip when she experiences negligible external forces (gravitational or any other), although she is, of course, never “massless.”

The law of conservation of matter summarizes many scientific observations about matter: It states that there is no detectable change in the total quantity of matter present when matter converts from one type to another (a chemical change) or changes among solid, liquid, or gaseous states (a physical change). Brewing beer and the operation of batteries provide examples of the conservation of matter (Figure 2). During the brewing of beer, the ingredients (water, yeast, grains, malt, hops and sugar) are converted into beer (water, alcohol, carbonation and flavoring substances) with no actual loss of substance. This is most clearly seen during the bottling process, when glucose turns into ethanol and carbon dioxide, and the total mass of the substances does not change. This can also be seen in a lead-acid car battery: the original substances (lead, lead oxide and sulfuric acid), which are capable of producing electricity, are changed into other substances (lead sulfate and water) that do not produce electricity, with no change in the actual amount of matter.

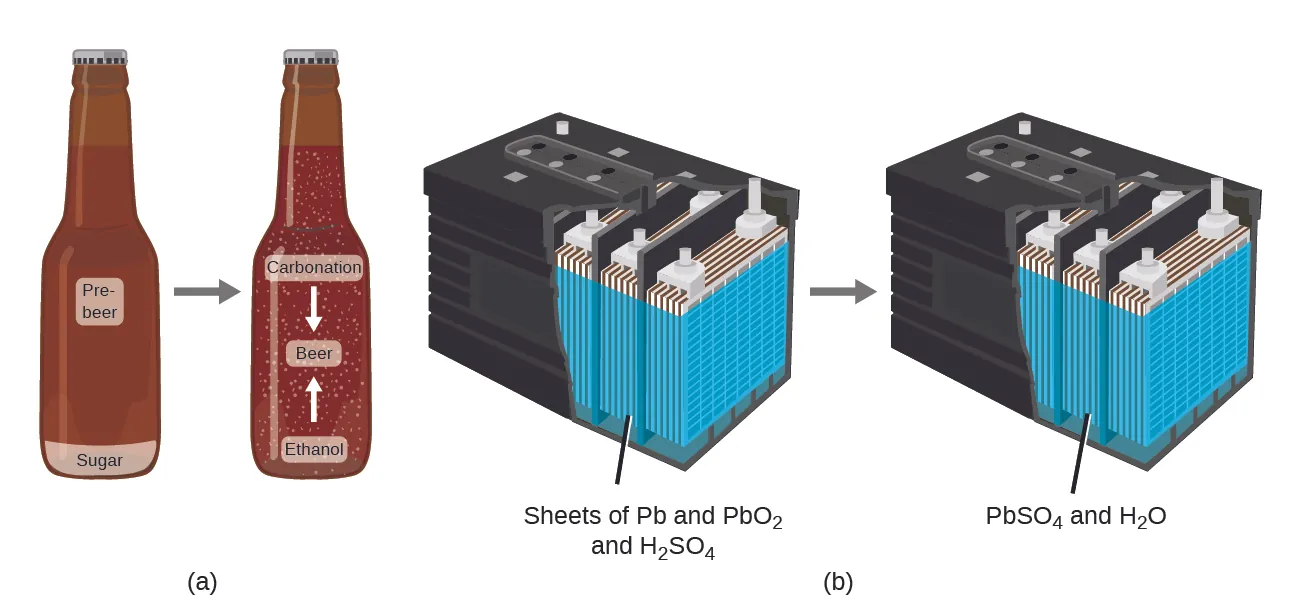

Diagram A shows a beer bottle containing pre-beer and sugar. An arrow points from this bottle to a second bottle. This second bottle contains the same volume of liquid, however, the sugar has been converted into ethanol and carbonation as beer was made. Diagram B shows a car battery that contains sheets of P B and P B O subscript 2 along with H subscript 2 S O subscript 4. After the battery is used, it contains an equal mass of P B S O subscript 4 and H subscript 2 O.
(a) The mass of beer precursor materials is the same as the mass of beer produced: sugar has become alcohol and carbonation. (b) The mass of the lead, lead oxide plates and sulfuric acid that goes into the production of electricity is exactly equal to the mass of lead sulfate and water that is formed.

Although this conservation law holds true for all conversions of matter, convincing examples are few and far between because, outside of the controlled conditions in a laboratory, we seldom collect all of the material that is produced during a particular conversion. For example, when you eat, digest and assimilate food, all of the matter in the original food is preserved. But because some of the matter is incorporated into your body, and much is excreted as various types of waste, it is challenging to verify by measurement.

Atoms and Molecules

An atom is the smallest particle of an element that has the properties of that element. Consider the element gold, for example. Imagine cutting a gold nugget in half, then cutting one of the halves in half and repeating this process until a piece of gold remained that was so small that it could not be cut in half (regardless of how tiny your knife may be). This minimally sized piece of gold is an atom (from the Greek atomos, meaning “indivisible”) (Figure 3). This atom would no longer be gold if it were divided any further.

Figure A shows a gold nugget as it would appear to the naked eye. The gold nugget is very irregular, with many sharp edges. It appears gold in color. The microscope image of a gold crystal shows many similarly sized gold stripes that are separated by dark areas. Looking closely, one can see that the gold stripes are made of many, tiny, circular atoms.
(a) This photograph shows a gold nugget. (b) A scanning-tunneling microscope (STM) can generate views of the surfaces of solids, such as this image of a gold crystal. Each sphere represents one gold atom (credit a: modification of work by United States Geological Survey; credit b: modification of work by “Erwinrossen”/Wikimedia Commons).

The first suggestion that matter is composed of atoms is attributed to the Greek philosophers Leucippus and Democritus, who developed their ideas in the 5th century BCE. However, it was not until the early nineteenth century that John Dalton (1766–1844), a British school teacher with a keen interest in science, supported this hypothesis with quantitative measurements. Since then, repeated experiments have confirmed many aspects of this hypothesis and it has become one of the central theories of chemistry. Other aspects of Dalton’s atomic theory are still used but with minor revisions (details of Dalton’s theory are provided in the chapter on atoms and molecules).

An atom is so small that its size is difficult to imagine. One of the smallest things we can see with our unaided eye is a single thread of a spider web: These strands are about 1/10,000 of a centimeter (0.0001 cm) in diameter. Although the cross-section of one strand is almost impossible to see without a microscope, it is huge on an atomic scale. A single carbon atom in the web has a diameter of about 0.000000015 centimeter and it would take about 7,000 carbon atoms to span the diameter of the strand. To put this in perspective, if a carbon atom were the size of a dime, the cross-section of one strand would be larger than a football field. This would require about 150 million “dimes” or carbon atoms to cover it. (Figure 4) shows increasingly close microscopic and atomic-level views of ordinary cotton.

Figure A shows a puffy white cotton boll growing on a brown twig. Figure B shows a magnified cotton strand. The strand appears transparent but contains dark areas within its interior. Figure C shows the surface of several crisscrossing and overlapping cotton fibers. Its surface is rough along the edges but smooth near the center of each strand. Figure D shows three strands of molecules connected into three vertical chains. Each strand contains about five molecules. Figure E shows that the cotton molecule contains about a dozen atoms. The black carbon atoms form rings that are connected by red oxygen atoms. Many of the carbon atoms are also bonded to hydrogen atoms, shown as white balls, or other oxygen atoms.
These images provide an increasingly closer view: (a) a cotton boll, (b) a single cotton fiber viewed under an optical microscope (magnified 40 times), (c) a cotton fiber viewed under an electron microscope (much higher magnification than with the optical microscope) and (d and e) atomic-level models of the fiber (spheres of different colors represent atoms of different elements) (credit c: modification of work by “Featheredtar”/Wikimedia Commons).

An atom is so light that its mass is also difficult to imagine. A billion lead atoms (1,000,000,000 atoms) masses about 3 × 10−13 grams, a mass that is far too light to be measured on even the world’s most sensitive balances. It would require over 300,000,000,000,000 lead atoms (300 trillion, or 3 × 1014) to be measured and they would mass only 0.0000001 gram.

It is rare to find collections of individual atoms. Only a few elements, such as the gases helium, neon and argon, consist of a collection of individual atoms that move about independently of one another. Other elements, such as the gas states of hydrogen, nitrogen, oxygen and chlorine, are composed of units that consist of pairs of atoms (Figure 5). One form of the element phosphorus consists of units composed of four phosphorus atoms. The element sulfur exists in various forms, one of which consists of units composed of eight sulfur atoms. These units are called molecules. A molecule consists of two or more atoms joined by strong forces called chemical bonds. The atoms in a molecule move around as a unit, much like the cans of soda in a six-pack or a bunch of keys joined together on a single key ring. A molecule may consist of two or more identical atoms, as in the molecules found in the elements hydrogen, oxygen and sulfur or it may consist of two or more different atoms, as in the molecules found in water. Each water molecule is a unit that contains two hydrogen atoms and one oxygen atom. Each glucose molecule is a unit that contains 6 carbon atoms, 12 hydrogen atoms and 6 oxygen atoms. Like atoms, molecules are incredibly small and light. If an ordinary glass of water were enlarged to the size of the earth, the water molecules inside it would be about the size of golf balls.

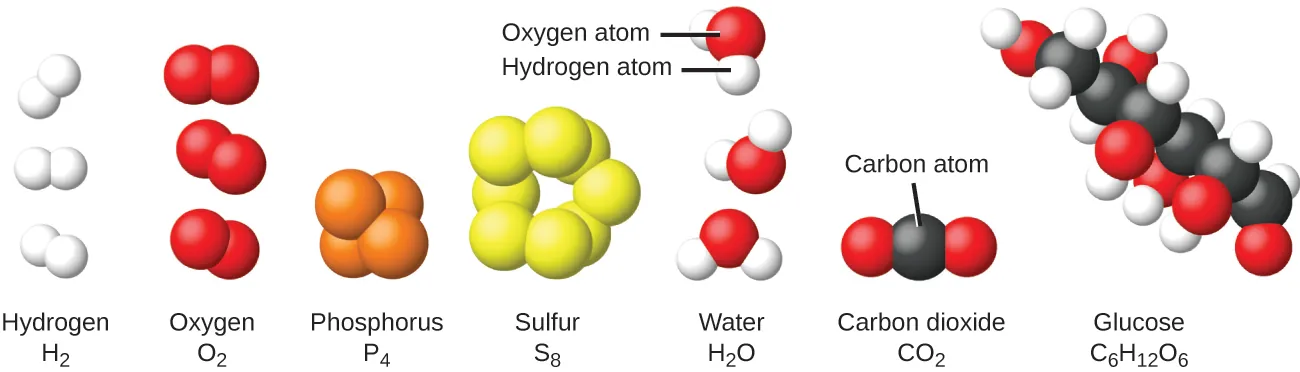

The hydrogen molecule, H subscript 2, is shown as two small, white balls bonded together. The oxygen molecule O subscript 2, is shown as two red balls bonded together. The phosphorous molecule, P subscript 4, is shown as four orange balls bonded tightly together. The sulfur molecule, S subscript 8, is shown as 8 yellow balls linked together. Water molecules, H subscript 2 O, consist of one red oxygen atom bonded to two smaller white hydrogen atoms. The hydrogen atoms are at an angle on the oxygen molecule. Carbon dioxide, C O subscript 2, consists of one carbon atom and two oxygen atoms. One oxygen atom is bonded to the carbon’s right side and the other oxygen is bonded to the carbon’s left side. Glucose, C subscript 6 H subscript 12 O subscript 6, contains a chain of carbon atoms that have attached oxygen or hydrogen atoms.
The elements hydrogen, oxygen, phosphorus and sulfur form molecules consisting of two or more atoms of the same element. The compounds water, carbon dioxide and glucose consist of combinations of atoms of different elements.

Classifying Matter

We can classify matter into several categories. Two broad categories are pure substances  and mixtures. A pure substance has a constant composition. All specimens of a pure substance have exactly the same makeup and properties. Any sample of sucrose (table sugar) consists of 42.1% carbon, 6.5% hydrogen and 51.4% oxygen by mass. Any sample of sucrose also has the same physical properties, such as melting point, color and sweetness, regardless of the source from which it is isolated.

We can divide pure substances into two classes: elements and compounds. Pure substances that cannot be broken down into simpler substances by chemical changes are called elements. Iron, silver, gold, aluminum, sulfur, oxygen, and copper are familiar examples of the more than 100 known elements. Of these, about 90 occur naturally on the earth and two dozen or so have been created in laboratories.

Pure substances that can be broken down by chemical changes are called compounds. This breakdown may produce either elements or other compounds, or both. Mercury(II) oxide, an orange, crystalline solid, can be broken down by heat into the elements mercury and oxygen (Figure 6). When heated in the absence of air, the compound sucrose is broken down into the element carbon and the compound water. (The initial stage of this process, when the sugar is turning brown, is known as caramelization—this is what imparts the characteristic sweet and nutty flavor to caramel apples, caramelized onions, and caramel). Silver chloride is a white solid that can be broken down into its elements, silver and chlorine, by the absorption of light. This property is the basis for the use of this compound in photographic films and photochromic eyeglasses (those with lenses that darken when exposed to light).

This figure shows a series of three photos labeled a, b, and c. Photo a shows the bottom of a test tube that is filled with an orange-red substance. A slight amount of a silver substance is also visible. Photo b shows the substance in the test tube being heated over a flame. Photo c shows a test tube that is not longer being heated. The orange-red substance is almost completely gone, and small, silver droplets of a substance are left.
(a) The compound mercury(II) oxide, (b) when heated, (c) decomposes into silvery droplets of liquid mercury and invisible oxygen gas (credit: modification of work by Paul Flowers).

The properties of combined elements are different from those in the free, or uncombined, state. For example, white crystalline sugar (sucrose) is a compound resulting from the chemical combination of the element carbon, which is a black solid in one of its uncombined forms, and the two elements hydrogen and oxygen, which are colorless gases when uncombined. Free sodium, an element that is a soft, shiny, metallic solid, and free chlorine, an element that is a yellow-green gas, combine to form sodium chloride (table salt), a compound that is a white, crystalline solid.

A mixture is composed of two or more types of matter that can be present in varying amounts and can be separated by physical changes, such as evaporation (you will learn more about this later). A mixture with a composition that varies from point to point is called a heterogeneous mixture. Italian dressing is an example of a heterogeneous mixture (Figure 7a). Its composition can vary because we can make it from varying amounts of oil, vinegar and herbs. It is not the same from point to point throughout the mixture—one drop may be mostly vinegar, whereas a different drop may be mostly oil or herbs because the oil and vinegar separate and the herbs settle. Other examples of heterogeneous mixtures are chocolate chip cookies (we can see the separate bits of chocolate, nuts and cookie dough) and granite (we can see the quartz, mica, feldspar and more).

Diagram A shows a glass containing a red liquid with a layer of yellow oil floating on the surface of the red liquid. A zoom in box is magnifying a portion of the red liquid that contains some of the yellow oil. The zoomed in image shows that oil is forming round droplets within the red liquid. Diagram B shows a photo of Gatorade G 2. A zoom in box is magnifying a portion of the Gatorade, which is uniformly red.
(a) Oil and vinegar salad dressing is a heterogeneous mixture because its composition is not uniform throughout. (b) A commercial sports drink is a homogeneous mixture because its composition is uniform throughout. (credit a “left”: modification of work by John Mayer; credit a “right”: modification of work by Umberto Salvagnin; credit b “left: modification of work by Jeff Bedford)

A homogeneous mixture, also called a solution, exhibits a uniform composition and appears visually the same throughout. An example of a solution is a sports drink, consisting of water, sugar, coloring, flavoring, and electrolytes mixed together uniformly (Figure 7b). Each drop of a sports drink tastes the same because each drop contains the same amounts of water, sugar and other components. Note that the composition of a sports drink can vary—it could be made with somewhat more or less sugar, flavoring or other components, and still be a sports drink. Other examples of homogeneous mixtures include air, maple syrup, gasoline and a solution of salt in water.

Although there are just over 100 elements, tens of millions of chemical compounds result from different combinations of these elements. Each compound has a specific composition and possesses definite chemical and physical properties by which we can distinguish it from all other compounds. In addition, of course, there are innumerable ways to combine elements and compounds to form different mixtures. A summary of how to distinguish between the various major classifications of matter is shown in (Figure 8).

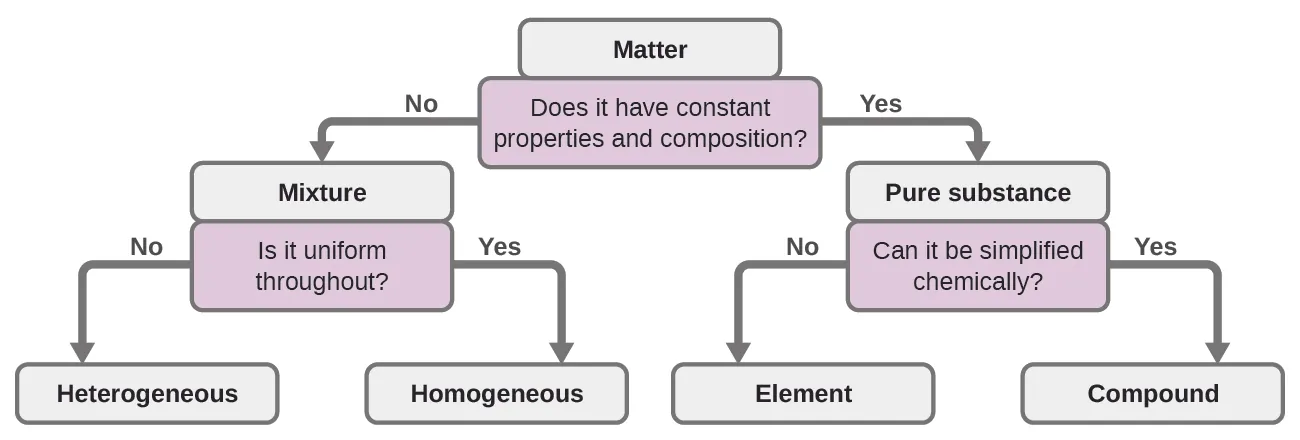

This flow chart begins with matter at the top and the question: does the matter have constant properties and composition? If no, then it is a mixture. This leads to the next question: is it uniform throughout? If no, it is heterogeneous. If yes, it is homogenous. If the matter does have constant properties and composition, it is a pure substance. This leads to the next question: can it be simplified chemically? If no, it is an element. If yes, then it is a compound.
Depending on its properties, a given substance can be classified as a homogeneous mixture, a heterogeneous mixture, a compound or an element.

Eleven elements make up about 99% of the earth’s crust and atmosphere (Table 1). Oxygen constitutes nearly one-half and silicon about one-quarter of the total quantity of these elements. A majority of elements on earth are found in chemical combinations with other elements; about one-quarter of the elements are also found in the free state.

Table 1:  Elemental Composition of Earth
Element Symbol Percent Mass Element Symbol Percent Mass
oxygen O 49.20 chlorine Cl 0.19
silicon Si 25.67 phosphorus P 0.11
aluminum Al 7.50 manganese Mn 0.09
iron Fe 4.71 carbon C 0.08
calcium Ca 3.39 sulfur S 0.06
sodium Na 2.63 barium Ba 0.04
potassium K 2.40 nitrogen N 0.03
magnesium Mg 1.93 fluorine F 0.03
hydrogen H 0.87 strontium Sr 0.02
titanium Ti 0.58 all others 0.47

Conversion of Temperature Units

We use the word temperature to refer to the hotness or coldness of a substance. One way we measure a change in temperature is to use the fact that most substances expand when their temperature increases and contract when their temperature decreases. The mercury or alcohol in a common glass thermometer changes its volume as the temperature changes. Because the volume of the liquid changes more than the volume of the glass, we can see the liquid expand when it gets warmer and contract when it gets cooler.

To mark a scale on a thermometer, we need a set of reference values: Two of the most commonly used are the freezing and boiling temperatures of water at a specified atmospheric pressure. On the Celsius scale, 0 °C is defined as the freezing temperature of water and 100 °C as the boiling temperature of water. The space between the two temperatures is divided into 100 equal intervals, which we call degrees. On the Fahrenheit scale, the freezing point of water is defined as 32 °F and the boiling temperature as 212 °F. The space between these two points on a Fahrenheit thermometer is divided into 180 equal parts (degrees).

Defining the Celsius and Fahrenheit temperature scales as described in the previous paragraph results in a slightly more complex relationship between temperature values on these two scales than for different units of measure for other properties. Most measurement units for a given property are directly proportional to one another (y = mx). Using familiar length units as one example:

\text{length in feet} = \left(\dfrac{\SI{1}{ft}}{\SI{12}{in}}\right) \times \text{ length in inches}

where y = length in feet, x = length in inches, and the proportionality constant, m, is the conversion factor. The Celsius and Fahrenheit temperature scales, however, do not share a common zero point, and so the relationship between these two scales is a linear one rather than a proportional one (y = mx + b). Consequently, converting a temperature from one of these scales into the other requires more than simple multiplication by a conversion factor, m, it also must take into account differences in the scales’ zero points (b).

The linear equation relating Celsius and Fahrenheit temperatures is easily derived from the two temperatures used to define each scale. Representing the Celsius temperature as x and the Fahrenheit temperature as y, the slope, m, is computed to be:

m = \dfrac{\Delta y}{\Delta x} = \dfrac{\SI{212}{\degree F} - \SI{32}{\degree F}}{\SI{100}{\degree C} - \SI{0}{\degree C}} = \dfrac{\SI{180}{\degree F}}{\SI{100}{\degree C}} = \dfrac{\SI{9}{\degree F}}{\SI{5}{\degree C}}

The y-intercept of the equation, b, is then calculated using either of the equivalent temperature pairs, (100 °C, 212 °F) or (0 °C, 32 °F), as:

b = y-mx = \SI{32}{\degree F} - \left(\dfrac{\SI{9}{\degree F}}{\SI{5}{\degree C}}\right) \times \SI{0}{\degree C} = \SI{32}{\degree F}

The equation relating the temperature scales is then:

T_{\si{\degree F}} = \left(\dfrac{\SI{9}{\degree F}}{\SI{5}{\degree C}} \times T_{\si{\degree C}} \right) + \SI{32}{\degree C}

An abbreviated form of this equation that omits the measurement units is:

T_{\si{\degree F}} = \left(\dfrac{9}{5} \times T_{\si{\degree C}} \right) + 32

Rearrangement of this equation yields the form useful for converting from Fahrenheit to Celsius:

T_{\si{\degree C}} = \dfrac{5}{9}(T_{\si{\degree F}}-32)

As mentioned earlier in this chapter, the SI unit of temperature is the kelvin (K). Unlike the Celsius and Fahrenheit scales, the kelvin scale is an absolute temperature scale in which 0 (zero) K corresponds to the lowest temperature that can theoretically be achieved. The early 19th-century discovery of the relationship between a gas’s volume and temperature suggested that the volume of a gas would be zero at −273.15 °C. In 1848, British physicist William Thompson, who later adopted the title of Lord Kelvin, proposed an absolute temperature scale based on this concept (further treatment of this topic is provided in this text’s chapter on gases).

The freezing temperature of water on this scale is 273.15 K and its boiling temperature 373.15 K. Notice the numerical difference in these two reference temperatures is 100, the same as for the Celsius scale, and so the linear relation between these two temperature scales will exhibit a slope of 1 \frac{\si{K}}{\si{\degree C}} Following the same approach, the equations for converting between the kelvin and Celsius temperature scales are derived to be:

T_{\si{K}} = T_{\si{\degree C}}+273.15

T_{\si{\degree C}} = T_{\si{K}}-273.15

The 273.15 in these equations has been determined experimentally, so it is not exact. Figure 1 shows the relationship among the three temperature scales. Recall that we do not use the degree sign with temperatures on the kelvin scale.

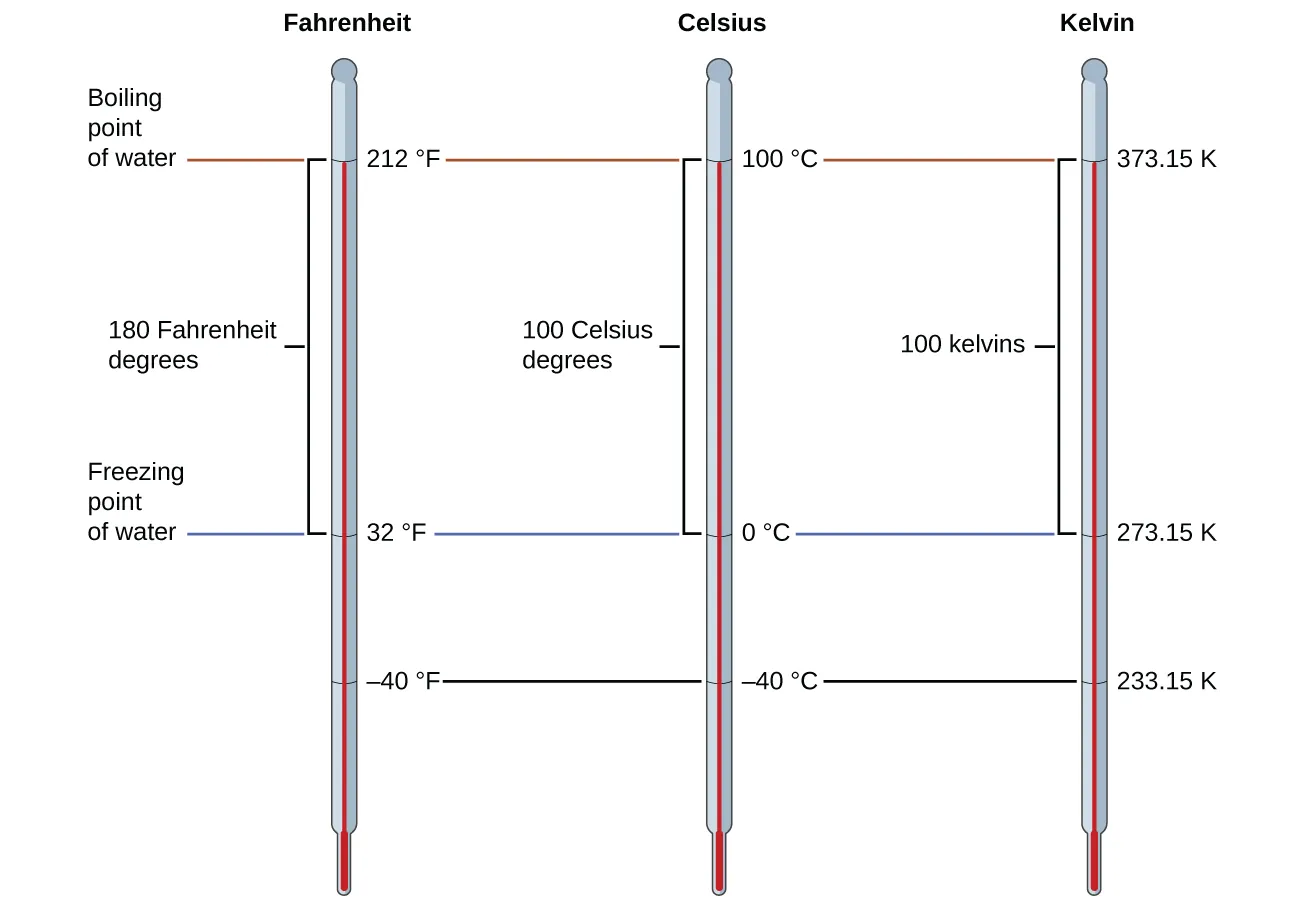

A thermometer is shown for the Fahrenheit, Celsius and Kelvin scales. Under the Fahrenheit scale, the boiling point of water is 212 degrees while the freezing point of water is 32 degrees. Therefore, there are 180 Fahrenheit degrees between the boiling point of water and the freezing point of water. Under the Celsius scale, the boiling point of water is 100 degrees while the freezing point of water is 0 degrees. Therefore, there are 100 Celsius degrees between the boiling point and freezing point of water. Under the kelvin scale, the boiling point of water is 373.15 K, while the freezing point of water is 273.15 K. 233.15 K is equal to negative 40 degrees Celsius, which is also equal to negative 40 degrees Fahrenheit.
The Fahrenheit, Celsius, and kelvin temperature scales are compared.

Although the kelvin (absolute) temperature scale is the official SI temperature scale, Celsius is commonly used in many scientific contexts and is the scale of choice for nonscience contexts in almost all areas of the world. Very few countries (the U.S. and its territories, the Bahamas, Belize, Cayman Islands, and Palau) still use Fahrenheit for weather, medicine, and cooking.

Conversion from Celsius

Normal body temperature has been commonly accepted as 37.0 °C (although it varies depending on time of day and method of measurement, as well as among individuals). What is this temperature on the kelvin scale and on the Fahrenheit scale?

Solution

\si{K} = \si{\degree C} + 273.15 = 37.0 + 273.2 = 310.2 \si{K}

\si{\degree F} = \dfrac{9}{5} \si{\degree C} + 32.0 = \left(\dfrac{9}{5} \times 37.0 \right) +32.0 = 66.6+32.0 = 98.6 \si{\degree F}

Check Your Learning

Convert 80.92 °C to K and °F.

ANSWER:

354.07 K, 177.7 °F

Conversion from Fahrenheit

Baking a ready-made pizza calls for an oven temperature of 450 °F. If you are in Europe, and your oven thermometer uses the Celsius scale, what is the setting? What is the kelvin temperature?

Solution

\si{\degree C} = \dfrac{5}{9}(\si{\degree F} - 32) = \dfrac{5}{9}(450 - 32) = \dfrac{5}{9} \times 418 = 232 \si{\degree C} \longrightarrow \text{set oven to \SI{230}{\degree C}\hspace{3em} (two significant figures)}

\si{K} = \si{\degree C} +273.15 = 230 + 273 = 503 \si{K} \longrightarrow \SI{5.0d2}{K}\hspace{3em} \text{(two significant figures)}

Check Your Learning

Convert 50 °F to °C and K.

ANSWER:

10 °C, 280 K

In case you are wondering

DECOMPOSITION OF WATER / PRODUCTION OF HYDROGEN

Water consists of the elements hydrogen and oxygen combined in a 2 to 1 ratio. Water can be broken down into hydrogen and oxygen gases by the addition of energy. One way to do this is with a battery or power supply, as shown in (Figure 9).

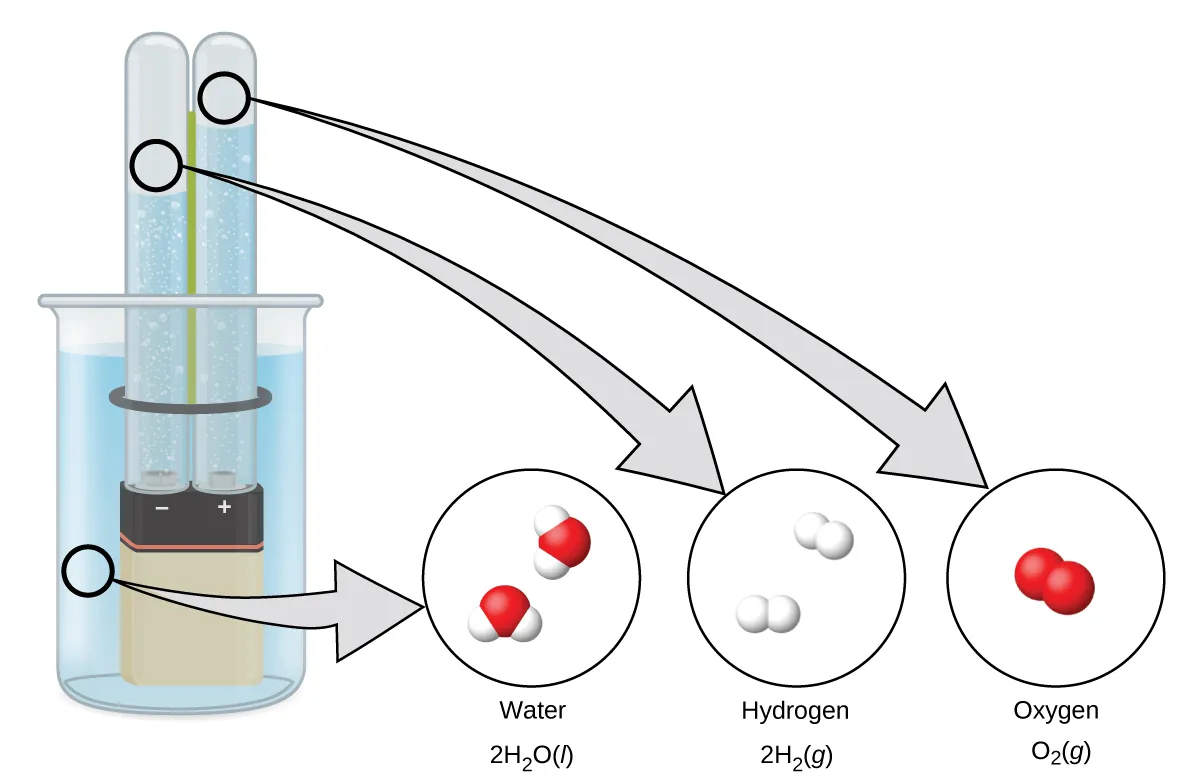

A rectangular battery is immersed in a beaker filled with liquid. Each of the battery terminals are covered by an overturned test tube. The test tubes each contain a bubbling liquid. Zoom in areas indicate that the liquid in the beaker is water, 2 H subscript 2 O liquid. The bubbles in the test tube over the negative terminal are hydrogen gas, 2 H subscript 2 gas. The bubbles in the test tube over the positive terminal are oxygen gas, O subscript 2 gas.
The decomposition of water is shown at the macroscopic, microscopic, and symbolic levels. The battery provides an electric current (microscopic) that decomposes water. At the macroscopic level, the liquid separates into the gases hydrogen (on the left) and oxygen (on the right). Symbolically, this change is presented by showing how liquid H2O separates into H2 and O2 gases.

The breakdown of water involves a rearrangement of the atoms in water molecules into different molecules, each composed of two hydrogen atoms and two oxygen atoms, respectively. Two water molecules form one oxygen molecule and two hydrogen molecules. The representation for what occurs, \ce{2H2O(l) -> 2H2(g) + O2(g)}, will be explored in more depth in later chapters.

The two gases produced have distinctly different properties. Oxygen is not flammable but is required for combustion of a fuel, and hydrogen is highly flammable and a potent energy source. How might this knowledge be applied in our world? One application involves research into more fuel-efficient transportation. Fuel-cell vehicles (FCV) run on hydrogen instead of gasoline (Figure 10). They are more efficient than vehicles with internal combustion engines, are nonpolluting, and reduce greenhouse gas emissions, making us less dependent on fossil fuels. FCVs are not yet economically viable, however, and current hydrogen production depends on natural gas. If we can develop a process to economically decompose water, or produce hydrogen in another environmentally sound way, FCVs may be the way of the future.

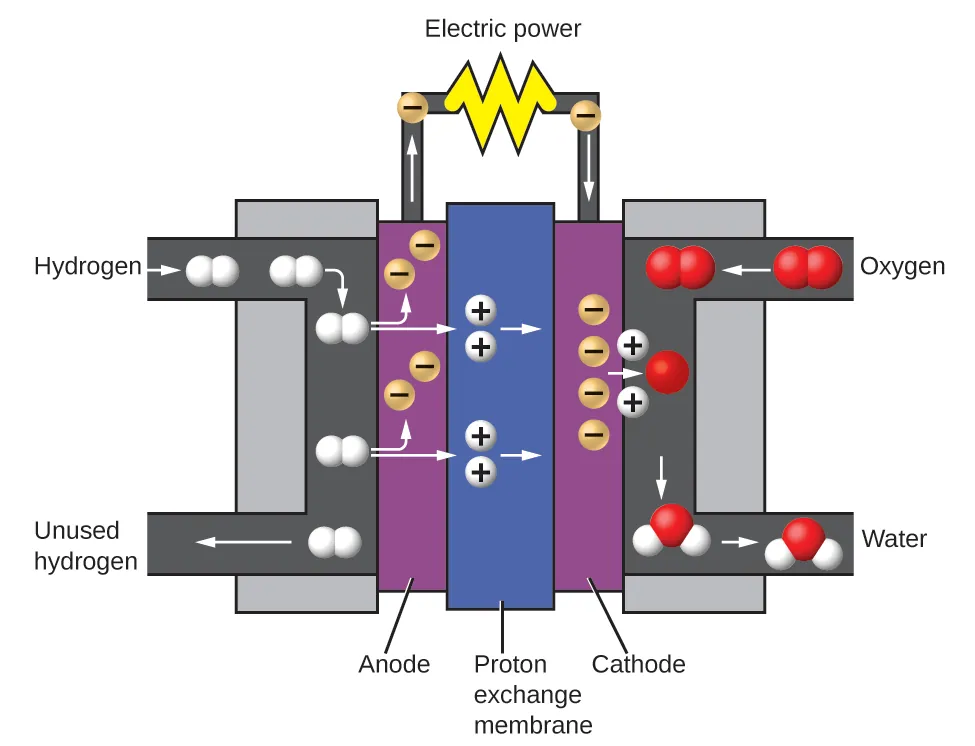

The fuel cell consists of a proton exchange membrane sandwiched between an anode and a cathode. Hydrogen gas enters the battery near the anode. Oxygen gas enters the battery near the cathode. The entering hydrogen gas is broken up into single white spheres that each have a positive charge. These are protons. The protons repel negatively-charged electrons within the anode. These electrons travel through a circuit, providing electricity to anything attached to the battery. The protons continue through the proton exchange membrane and through the cathode to reach the oxygen gas molecules at the opposite end of the battery. There, the oxygen atoms split up into single red spheres. Each oxygen atom takes on two of the incoming protons to form a water molecule.
A fuel cell generates electrical energy from hydrogen and oxygen via an electrochemical process and produces only water as the waste product.
CHEMISTRY OF CELL PHONES

Imagine how different your life would be without cell phones (Figure 11) and other smart devices. Cell phones are made from numerous chemical substances, which are extracted, refined, purified, and assembled using an extensive and in-depth understanding of chemical principles. About 30% of the elements that are found in nature are found within a typical smart phone. The case/body/frame consists of a combination of sturdy, durable polymers comprised primarily of carbon, hydrogen, oxygen, and nitrogen [acrylonitrile butadiene styrene (ABS) and polycarbonate thermoplastics], and light, strong, structural metals, such as aluminum, magnesium, and iron. The display screen is made from a specially toughened glass (silica glass strengthened by the addition of aluminum, sodium, and potassium) and coated with a material to make it conductive (such as indium tin oxide). The circuit board uses a semiconductor material (usually silicon); commonly used metals like copper, tin, silver, and gold; and more unfamiliar elements such as yttrium, praseodymium, and gadolinium. The battery relies upon lithium ions and a variety of other materials, including iron, cobalt, copper, polyethylene oxide, and polyacrylonitrile.

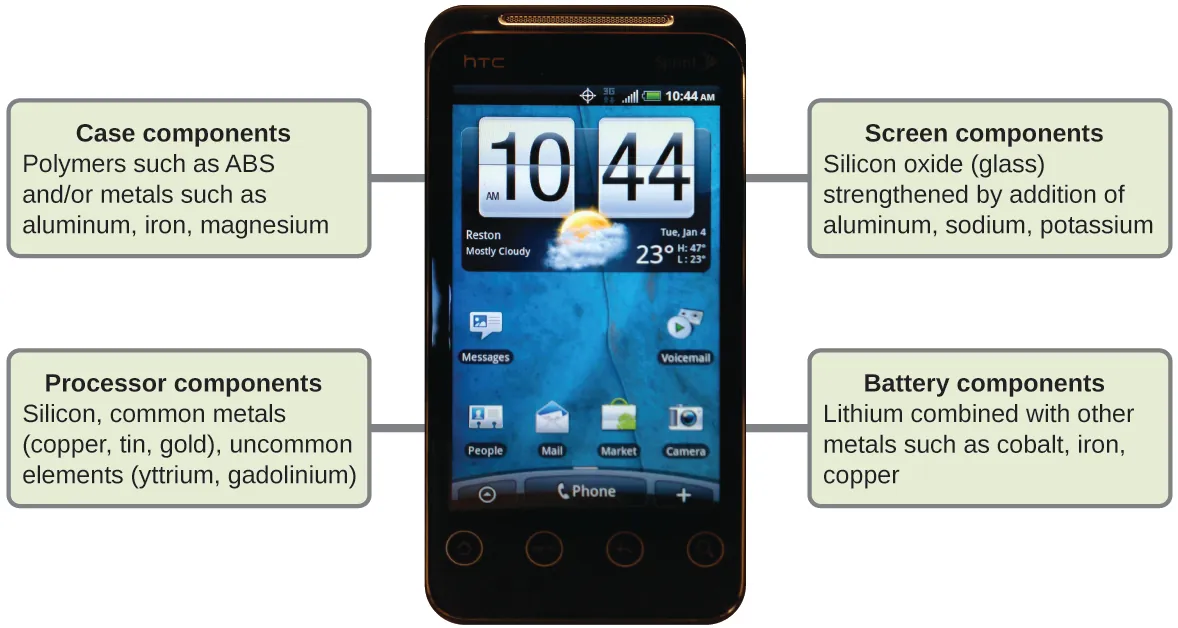

A cell phone is labeled to show what its components are made of. The case components are made of polymers such as A B S and or metals such as aluminum, iron, and magnesium. The processor components are made of silicon, common metals such as copper, tin and gold, and uncommon elements such as yttrium and gadolinium. The screen components are made of silicon oxide, also known as glass. The glass is strengthened by the addition of aluminum, sodium, and potassium. The battery components contain lithium combined with other metals such as cobalt, iron, and copper.
Almost one-third of naturally occurring elements are used to make a cell phone. (credit: modification of work by John Taylor)

Key Concepts and Summary

Matter is anything that occupies space and has mass. The basic building block of matter is the atom, the smallest unit of an element that can enter into combinations with atoms of the same or other elements. In many substances, atoms are combined into molecules. On earth, matter commonly exists in three states: solids, of fixed shape and volume; liquids, of variable shape but fixed volume; and gases, of variable shape and volume. Under high-temperature conditions, matter also can exist as a plasma. Most matter is a mixture: It is composed of two or more types of matter that can be present in varying amounts and can be separated by physical means. Heterogeneous mixtures vary in composition from point to point; homogeneous mixtures have the same composition from point to point. Pure substances consist of only one type of matter. A pure substance can be an element, which consists of only one type of atom and cannot be broken down by a chemical change, or a compound, which consists of two or more types of atoms.

Chemistry End of Chapter Exercises

1. Why do we use an object’s mass, rather than its weight, to indicate the amount of matter it contains?

2. What properties distinguish solids from liquids? Liquids from gases? Solids from gases?

3. How does a heterogeneous mixture differ from a homogeneous mixture? How are they similar?

4. How does a homogeneous mixture differ from a pure substance? How are they similar?

5. How does an element differ from a compound? How are they similar?

6. How do molecules of elements and molecules of compounds differ? In what ways are they similar?

7. How does an atom differ from a molecule? In what ways are they similar?

8. Many of the items you purchase are mixtures of pure compounds. Select three of these commercial products and prepare a list of the ingredients that are pure compounds.

9. Classify each of the following as an element, a compound, or a mixture:

(a) copper

(b) water

(c) nitrogen

(d) sulfur

(e) air

(f) sucrose

(g) a substance composed of molecules each of which contains two iodine atoms

(h) gasoline

10. Classify each of the following as an element, a compound, or a mixture:

(a) iron

(b) oxygen

(c) mercury(II) oxide

(d) pancake syrup

(e) carbon dioxide

(f) a substance composed of molecules each of which contains one hydrogen atom and one chlorine atom

(g) baking soda

(h) baking powder

11. A sulfur atom and a sulfur molecule are not identical. What is the difference?

12. How are the molecules in oxygen gas, the molecules in hydrogen gas and water molecules similar? How do they differ?

13. We refer to astronauts in space as weightless, but not without mass. Why?

14. As we drive an automobile, we don’t think about the chemicals consumed and produced. Prepare a list of the principal chemicals consumed and produced during the operation of an automobile.

15. Matter is everywhere around us. Make a list by name of fifteen different kinds of matter that you encounter every day. Your list should include (and label at least one example of each) the following: a solid, a liquid, a gas, an element, a compound, a homogeneous mixture, a heterogeneous mixture and a pure substance.

16. When elemental iron corrodes it combines with oxygen in the air to ultimately form red brown iron(III) oxide which we call rust. (a) If a shiny iron nail with an initial mass of 23.2 g is measured after being coated in a layer of rust, would you expect the mass to have increased, decreased, or remained the same? Explain. (b) If the mass of the iron nail increases to 24.1 g, what mass of oxygen combined with the iron?

17. As stated in the text, convincing examples that demonstrate the law of conservation of matter outside of the laboratory are few and far between. Indicate whether the mass would increase, decrease or stay the same for the following scenarios, where chemical reactions take place:

(a) Exactly one pound of bread dough is placed in a baking tin. The dough is cooked in an oven at 350 °F releasing a wonderful aroma of freshly baked bread during the cooking process. Is the mass of the baked loaf less than, greater than or the same as the one pound of original dough? Explain.

(b) When magnesium burns in air a white flaky ash of magnesium oxide is produced. Is the mass of magnesium oxide less than, greater than, or the same as the original piece of magnesium? Explain.

(c) Antoine Lavoisier, the French scientist credited with first stating the law of conservation of matter, heated a mixture of tin and air in a sealed flask to produce tin oxide. Did the mass of the sealed flask and contents decrease, increase, or remain the same after the heating?

18. Yeast converts glucose to ethanol and carbon dioxide during anaerobic fermentation as depicted in the simple chemical equation here:

glucose ⟶ ethanol + carbon dioxide

(a) If 200.0 g of glucose is fully converted, what will be the total mass of ethanol and carbon dioxide produced?

(b) If the fermentation is carried out in an open container, would you expect the mass of the container and contents after fermentation to be less than, greater than or the same as the mass of the container and contents before fermentation? Explain.

(c) If 97.7 g of carbon dioxide is produced, what mass of ethanol is produced, assuming the experiment started with 200.0 g of glucose?

Glossary

atom
smallest particle of an element that can enter into a chemical combination
compound
pure substance that can be decomposed into two or more elements
diatomic elements
Elements that exist in pairs (two of the same atom) naturally: hydrogen, nitrogen, oxygen, fluorine, chlorine, iodine and bromine
element
substance that is composed of a single type of atom; a substance that cannot be decomposed by a chemical change
gas
state in which matter has neither definite volume nor shape (volume and shape are dependant of the container)
heterogeneous mixture
combination of substances with a composition that varies from point to point
homogeneous mixture
(also, solution) combination of substances with a composition that is uniform throughout
liquid
state of matter that has a definite volume but indefinite shape (dependant of container)
law of conservation of matter
when matter converts from one type to another or changes form, there is no detectable change in the total amount of matter present
mass
fundamental property indicating amount of matter; not to be confused with weight
matter
anything that occupies space and has mass
mixture
matter that can be separated into its components by physical means (not a compound, but may contain one or more compounds)
molecule
bonded collection of two or more atoms of the same or different elements
plasma
gaseous state of matter containing a large number of electrically charged atoms and/or molecules
pure substance
homogeneous substance that has a constant composition
solid
state of matter that is rigid, has a definite shape and has a fairly constant volume
weight
force that gravity exerts on an object; directly proportional to mass, but not the same thing
