Adapted from LibreTexts: Organic Chemistry With a Biological Emphasis by Tim Soderberg (University of Minnesota, Morris) 1.2: Functional Groups and Organic nomenclature

Functional groups in organic compounds



Functional groups are structural units within organic compounds that are defined by specific bonding arrangements between specific atoms.  The structure of capsaicin (Figure 1) incorporates several functional groups, labeled in the figure below and explained throughout this section.



Figure 1. Structure of capsaicin with labeled functional groups.

As we progress in our study of organic chemistry, it will become extremely important to be able to quickly recognize the most common functional groups, because they are the key structural elements that define how organic molecules react. For now, we will only worry about drawing and recognizing each functional group, as depicted by Lewis and line structures.

The ‘default’ in organic chemistry (essentially, the lack of any functional groups) is given the term alkane, characterized by single bonds between carbon and carbon, or between carbon and hydrogen.  Methane, CH4, is the natural gas you may burn in your furnace.  Octane, C8H18, is a component of gasoline.



Alkanes



Alkenes (sometimes called olefins) have carbon-carbon double bonds, and alkynes have carbon-carbon triple bonds.  Ethene, the simplest alkene example, is a gas that serves as a cellular signal in fruits to stimulate ripening.  If you want bananas to ripen quickly, put them in a paper bag along with an apple – the apple emits ethene gas, setting off the ripening process in the bananas. Ethyne, commonly called acetylene, is used as a fuel in welding blow torches.



Alkenes and alkynes



The bonding nature in alkenes is trigonal planar and in alkynes is linear.  Furthermore, many alkenes can take two geometric forms: cis or trans. The cis and trans forms of a given alkene are different molecules with different physical properties because there is a very high energy barrier to rotation about a double bond. In the example below, the difference between cis and trans alkenes is readily apparent.

Alkanes, alkenes, and alkynes are all classified as hydrocarbons, because they are composed solely of carbon and hydrogen atoms. Alkanes are said to be saturated hydrocarbons, because the carbons are bonded to the maximum possible number of hydrogens  – in other words, they are saturated with hydrogen atoms.  The double and triple-bonded carbons in alkenes and alkynes have fewer hydrogen atoms bonded to them – they are thus referred to as unsaturated hydrocarbons.  Hydrogen can be added to double and triple bonds, in a type of reaction called ‘hydrogenation,’ which will be discussed in a later chapter.

The aromatic group is exemplified by benzene (which used to be a commonly used solvent in the organic lab, but was shown to be carcinogenic later), and naphthalene, a compound with a distinctive ‘mothball’ smell. Aromatic groups are planar (flat) ring structures and are widespread in nature.

Aromatics

When the carbon of an alkane is bonded to one or more halogens, the group is referred to as a alkyl halide or haloalkane.  Chloroform is a useful solvent in the laboratory and was one of the earlier anesthetics used in surgery. Chlorodifluoromethane was used as a refrigerant and a propellant in aerosol sprays until the late twentieth century; but its use was discontinued after it was found to have harmful effects on the ozone layer. Bromoethane is a simple alkyl halide often used in organic synthesis. Alkyl halides groups are quite rare in biomolecules.



Haloalkanes

In the alcohol functional group, a single-bonded carbon is bonded to an OH group (the OH group, by itself, is referred to as a hydroxyl) not to be confused with the hydroxide polyatomic ion, OH. Except for methanol, all alcohols can be classified as primary, secondary, or tertiary.  In a primary alcohol, the carbon bonded to the hydroxyl group is also bonded to only one other carbon.  In a secondary alcohol and tertiary alcohol, the carbon is bonded to two or three other carbons, respectively. When the hydroxyl group is directly attached to an aromatic ring, the resulting group is called a phenol. The sulfur analog of an alcohol is called a thiol (from the Greek thio, for sulfur).



Alcohols, phenols, and thiols
Note that the definition of a phenol states that the hydroxyl oxygen must be directly attached to one of the carbons of the aromatic ring. The compound below, therefore, is not a phenol – it is a primary alcohol.

The distinction is important, as there is a significant difference in the reactivity of alcohols and phenols.

In an ether functional group, a central oxygen is bonded to two carbons. Below is the structure of diethyl ether, a common laboratory solvent and also one of the first compounds to be used as an anesthetic during operations. The sulfur analog of an ether is called a thioether or sulfide.



Ethers and sulfides

Amines are characterized by nitrogen atoms with single bonds to hydrogen and carbon. Just as there are primary, secondary and tertiary alcohols, there are primary, secondary and tertiary amines. Ammonia is a special case with no carbon atoms, only hydrogen.

One of the most important properties of amines is that they are basic and are readily protonated to form ammonium cations. In the case where a nitrogen has four bonds to carbon (which is somewhat unusual in biomolecules), it is called a quaternary ammonium ion.



Amines



Note: Do not be confused by how the terms, ‘primary’, ‘secondary’, and ‘tertiary’ are applied to alcohols and amines – the definitions are different.  In alcohols, what matters is how many other carbons the alcohol carbon is bonded to, while in amines, what matters is how many carbons the nitrogen is bonded to.

Phosphate and its derivative functional groups are ubiquitous in biomolecules.  A phosphate linked to a single organic group is called a phosphate ester; when it has links to two organic groups it is called a phosphate diester.  A linkage between two phosphates creates a phosphate anhydride

Organic phosphates

There are a number of functional groups that contain a carbon-oxygen double bond, which is commonly referred to as a carbonyl. Ketones and aldehydes are two closely related carbonyl-based functional groups that react in very similar ways.  In a ketone, the carbon atom of a carbonyl is bonded to two other carbons.  In an aldehyde, the carbonyl carbon is bonded on one side to a hydrogen, and on the other side to a carbon.  The exception to this definition is formaldehyde, in which the carbonyl carbon has bonds to two hydrogens.

A group with a carbon-nitrogen double bond is called an imine, or sometimes a Schiff base.

Aldehydes, ketones, and imines

When a carbonyl carbon is bonded on one side to a carbon (or hydrogen) and on the other side to an oxygen, nitrogen, or sulfur, the functional group is considered to be one of the ‘carboxylic acid derivatives’, a designation that describes a set of related functional groups.  The eponymous member of this family is the carboxylic acid functional group, in which the carbonyl is bonded to a hydroxyl group.   The conjugate base of a carboxylic acid is a carboxylate.  Other derivatives are carboxylic esters (usually just called ‘esters’) and amides, to name a few.  These carboxylic acid derivatives are very common in biological molecules and metabolic pathways.



Carboxylic acid derivatives

A single compound often contains several functional groups, particularly in biological organic chemistry.  The six-carbon sugar molecules glucose and fructose, for example, contain aldehyde and ketone groups, respectively, and both contain five alcohol groups (a compound with several alcohol groups is often referred to as a ‘polyol’).





The hormone testosterone, the amino acid phenylalanine, and the glycolysis metabolite dihydroxyacetone phosphate all contain multiple functional groups, as labeled below.



While not in any way a complete list, this section has covered most of the important functional groups that we will encounter in biological organic chemistry.

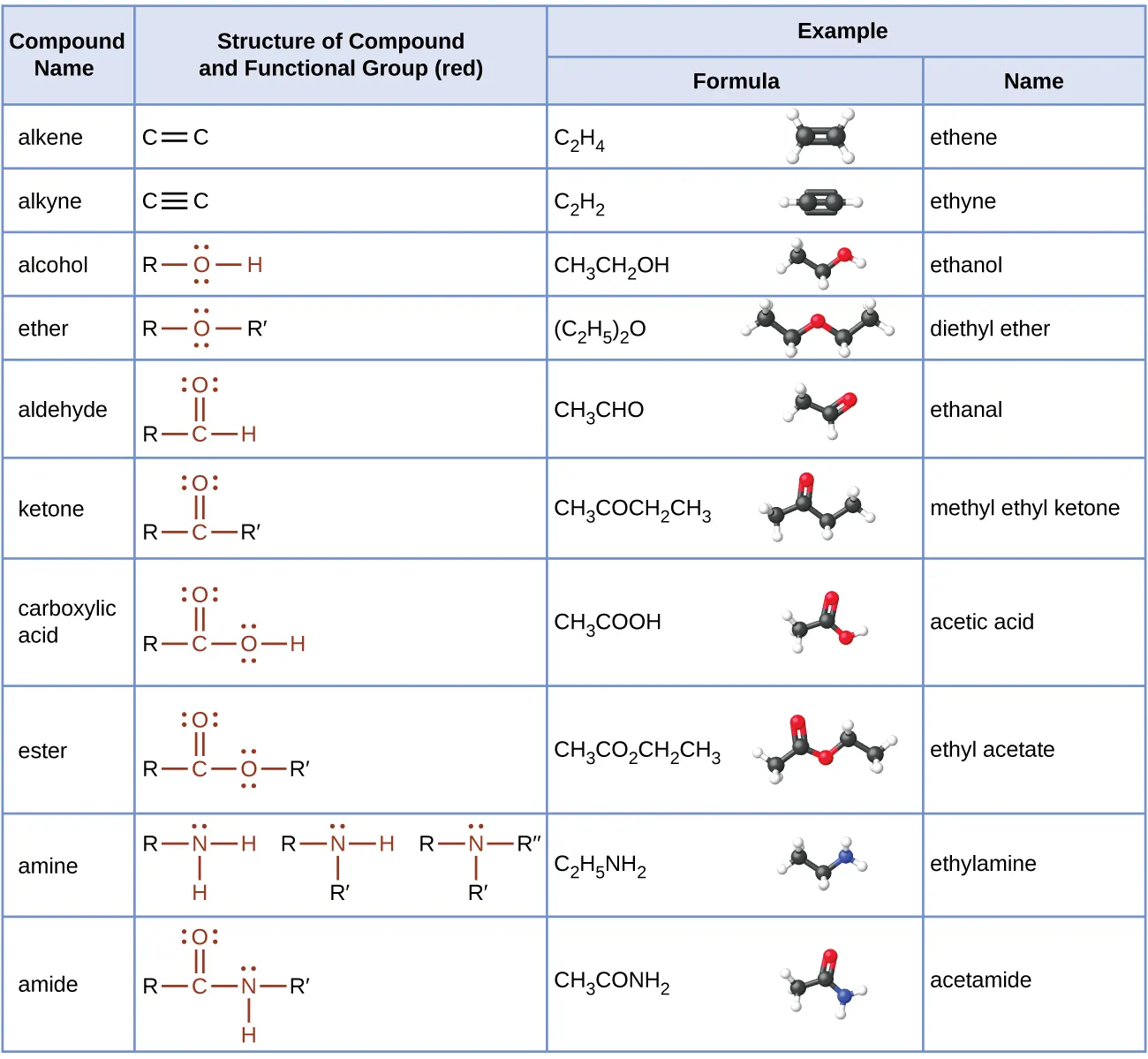

The table here summarizes the structures discussed in this chapter:

This table provides compound names, structures with functional groups in red, and examples that include formulas, structural formulas, ball-and-stick models, and names. Compound names include alkene, alkyne, alcohol, ether, aldehyde, ketone, carboxylic acid, ester, amine, and amide. Alkenes have a double bond. A formula is C subscript 2 H subscript 4 which is named ethene. The ball-and-stick model shows two black balls forming a double bond and each is bonded to two white balls. Alkynes have a triple bond. A formula is C subscript 2 H subscript 2 which is named ethyne. The ball-and-stick model shows two black balls with a triple bond between them each bonded to one white ball. Alcohols have an O H group. The O has two pairs of electron dots. A formula is C H subscript 3 C H subscript 2 O H which is named ethanol. The ball-and-stick model shows two black balls and one red ball bonded to each other with a single bond. There are four white balls visible. Ethers have an O atom in the structure between two R groups. The O atom has two sets of electron dots. A formula is ( C subscript 2 H subscript 5 ) subscript 2 O which is named ethanal. The ball-and-stick model shows two black balls bonded to a red ball which is bonded to two more black balls. All bonds are single. There are five white balls visible. Aldehydes have a C atom to which a double bonded O and an H and an R are included in the structure. The O atom has two sets of electron dots. A formula is C H subscript 3 C H O which is named Ethanal. The ball-and-stick model shows two black bonds bonded to two red balls. The ball-and-stick model shows two black balls bonded with a single bond and the second black ball forms a double bond with a red ball. There are three white balls visible. Ketones show a C atom to which a double bonded O is attached. The left side of the C atom is bonded to R and the right side is bonded to R prime. The O atom as two sets of electron dots. The formula is C H subscript 3 C O C H subscript 2 C H subscript 3 and is named methyl ethyl ketone. The ball-and-stick models shows four black balls all forming single bonds with each other. The second black ball forms a double bond with a red ball. There are five white balls visible. Carboxylic acids have a C to which a double bonded O and an O H are included in the structure. Each O atom has two sets of electron dots. A formula is C H subscript 3 C O O H which is named ethanoic or acetic acid. The ball-and-stick model shows two black balls and one red ball forming single bonds with each other. The second black ball also forms a double bond with another red ball. Three white balls are visible. Esters have a C atom which forms a double bond with an O atom and single bond with another O atom which has an attached hydrocarbon group in the structure. Each O atom has two sets of electron dots. A formula is C H subscript 3 C O subscript 2 C H subscript 2 C H subscript 3 which is named ethyl acetate. The ball-and-stick model shows two black balls, a red ball, and two more black balls forming single bonds with each other. The second black ball forms a double bond with another red ball. There are five white balls visible. Amines have an N atom in the structure to which three hydrocarbon groups, two hydrocarbon groups and one H atom, or one hydrocarbon group and two H atoms may be bonded. Each n has a single set of electron dots. A formula is C subscript 2 H subscript 5 N H subscript 2 which is named ethylamine. The ball-and-stick model shows two black balls and one blue ball forming single bonds with each other. There are five white balls visible. Amides have a C to which a double bonded O and single N incorporated in a structure between two hydrocarbon groups. One hydrocarbon group is bonded to the C, the other to the N. Amides can also have a H atom bonded to the N. The O atom as two sets of electron dots, and the N atom has one set. A formula is C H subscript 3 C O N H subscript 2 which is named ethanamide or acetamide. The ball-and-stick model shows two black balls and one blue ball forming single bonds with each other. The second black ball forms a double bond with one red ball. There are four white balls visible.

Examples

  1.   Identify the functional groups (other than alkanes) in the following organic compounds. State whether alcohols and amines are primary, secondary, or tertiary.



Solutions to exercises



2.  Draw one example each of compounds fitting the descriptions below, using line structures.  Be sure to designate the location of all non-zero formal charges. All atoms should have complete octets (phosphorus may exceed the octet rule). There are many possible correct answers for these, so be sure to check your structures with your instructor or tutor.

a) a compound with molecular formula C6H11NO that includes alkene, secondary amine, and primary alcohol functional groups

b) an ion with molecular formula C3H5O62- that includes aldehyde, secondary alcohol, and phosphate functional groups.

c) A compound with molecular formula C6H9NO that has an amide functional group and does not have an alkene group.
